CAT.SaveManagment Efficient renaming and saving of CATIA V5 models

Version 03.05.24 | 11.03.2024

 Videos | Test license [30 days] | Download | Purchase

CAT.Savemanagment is powerfull tool for efficient renaming and saving of CATIA fffmodels

In recent years, the complexity of products and the volume of CAD data have increased steadily. Nowadays, a new design does not start from scratch. Instead, new designs are based on company-specific templates.
The challenge often lies in the time-consuming modification of the naming and cause in the management and storage of the new parts and assemblies. Associativity with 2D drawings must also be maintained.
These requirements can be fulfilled with CATIA V5 in the default configuration only by time – consuming manual tasks.
This is where CATSaveManagement comes in, with a host of useful functions to help you make changes quickly.


   The most important
 Renaming | Save as
 Partnumber | Instancename | Filename| Properties
 Product | Part

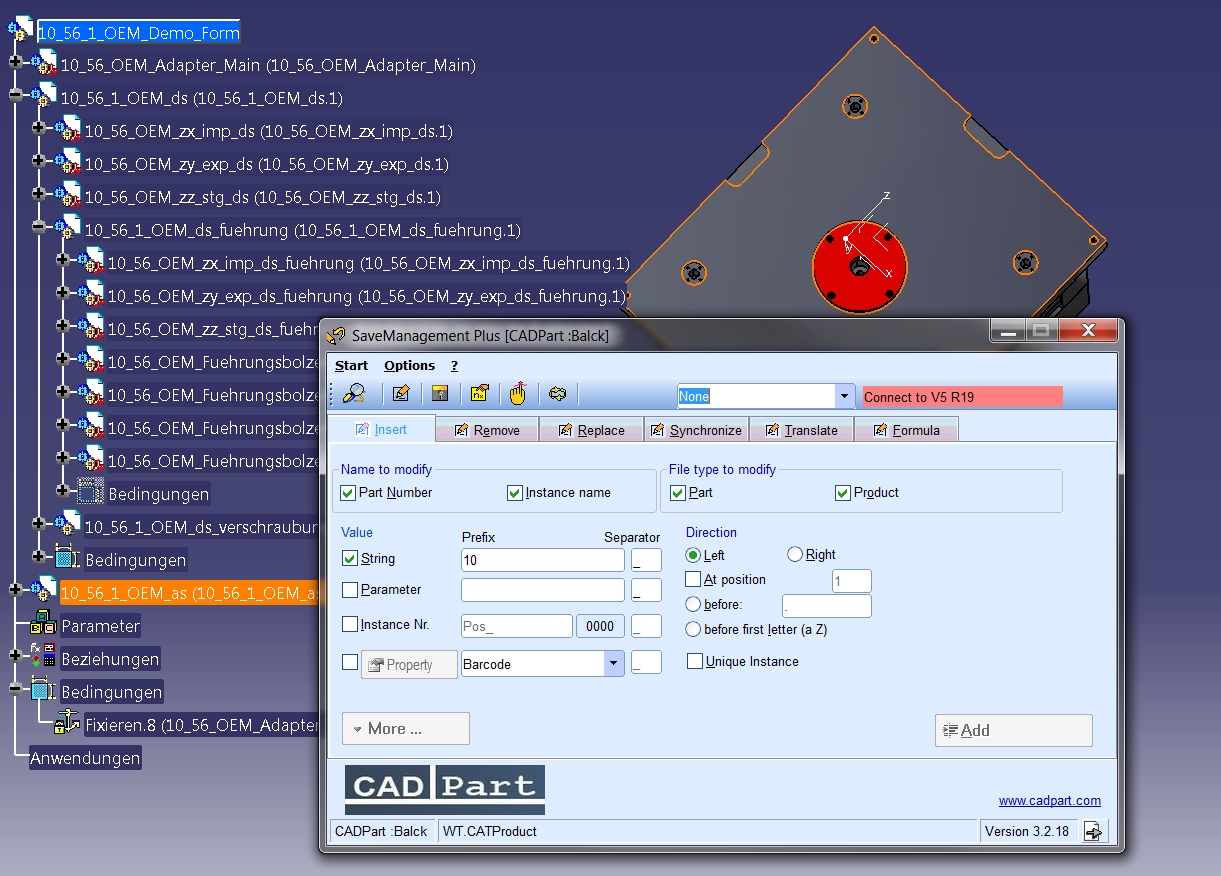

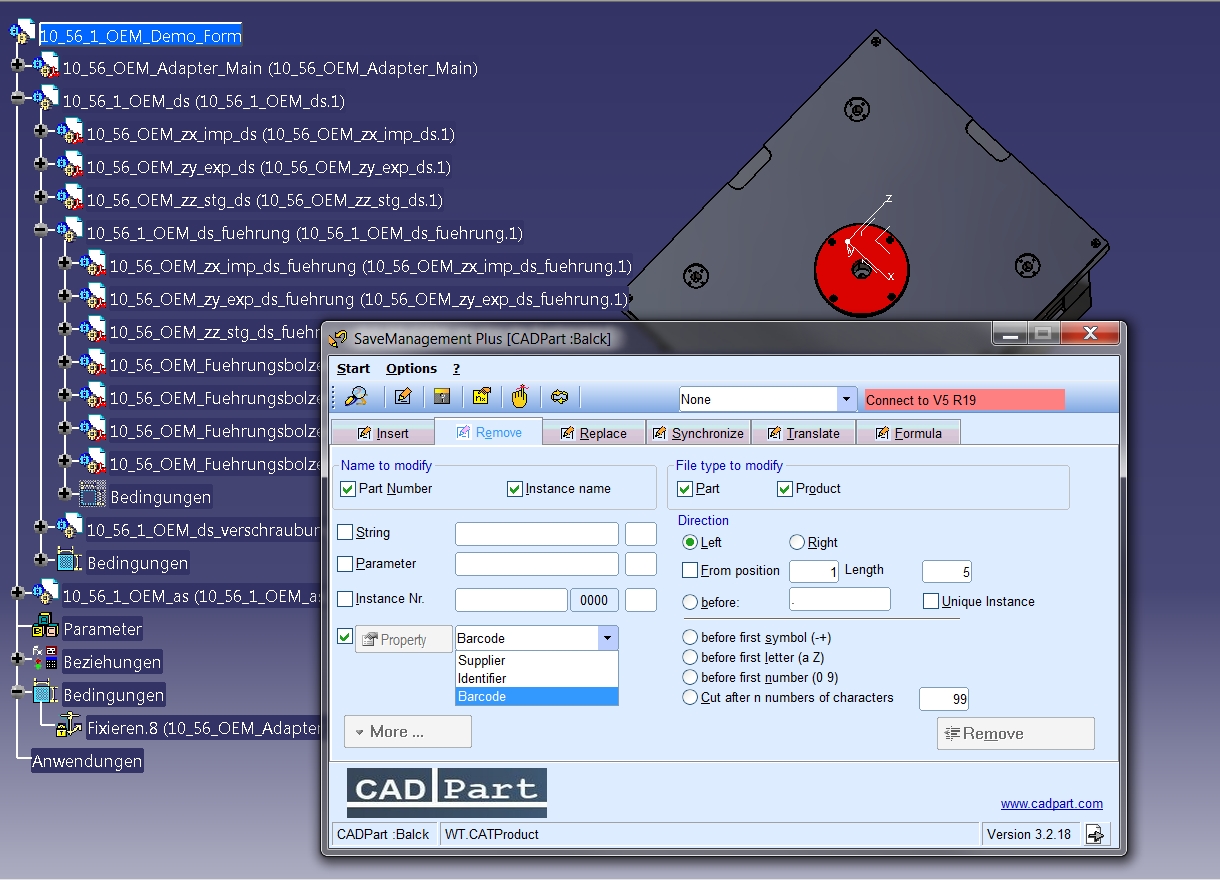

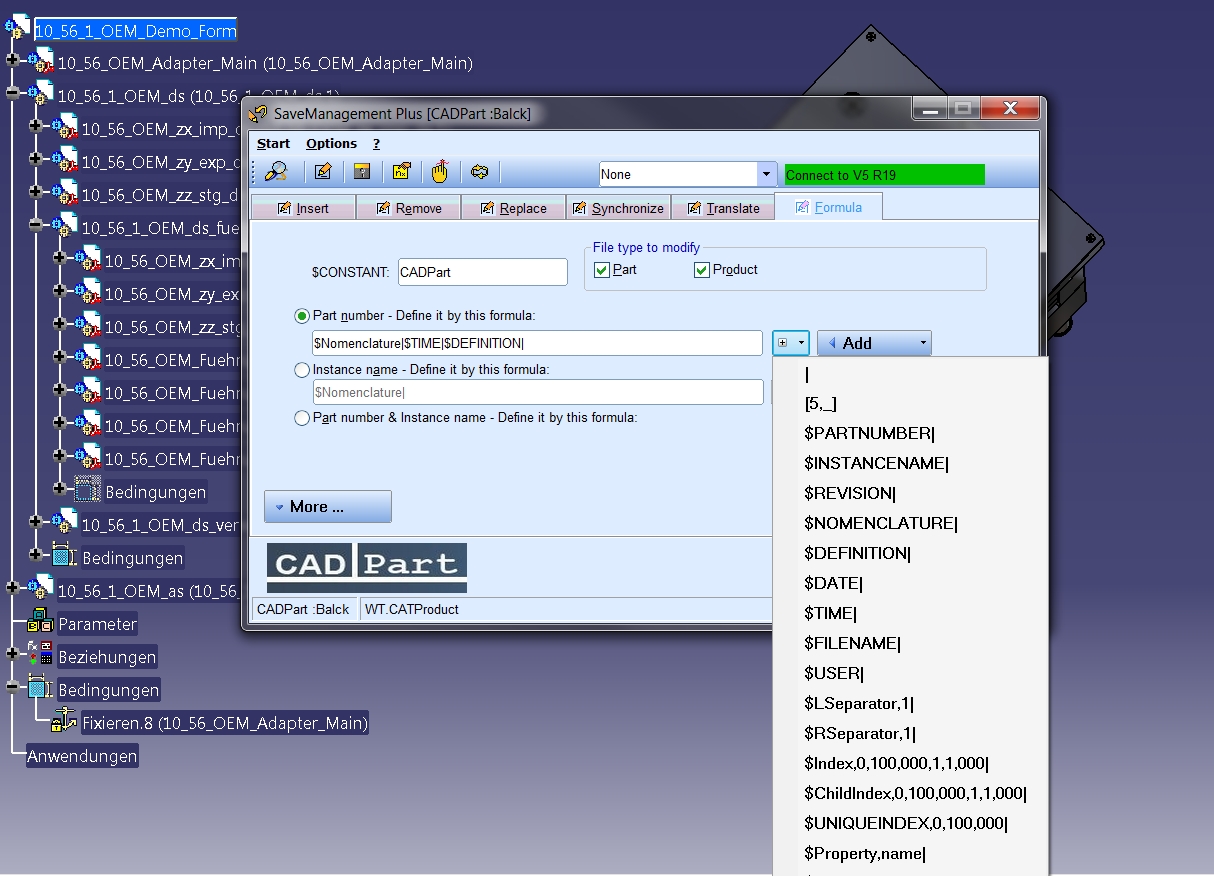

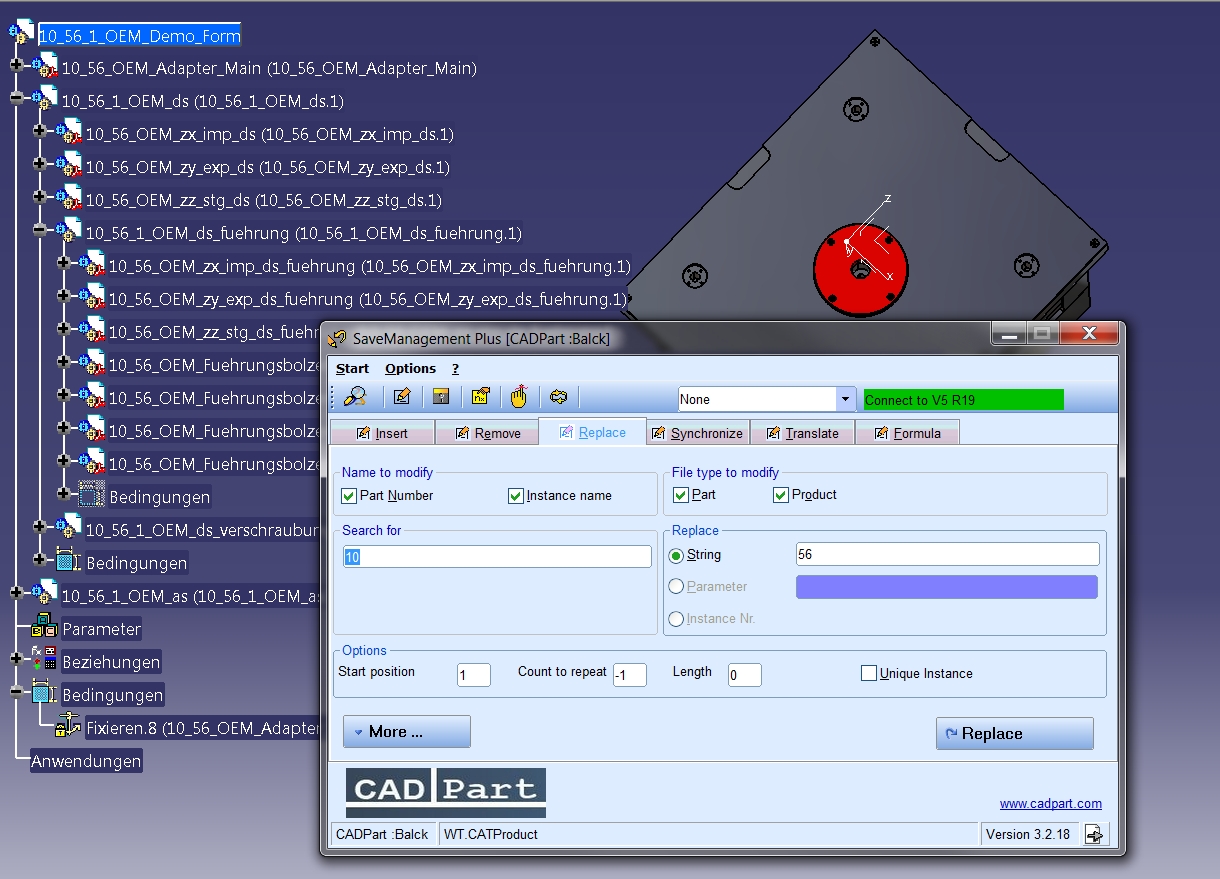

 Insert | Remove | Replace | Formula

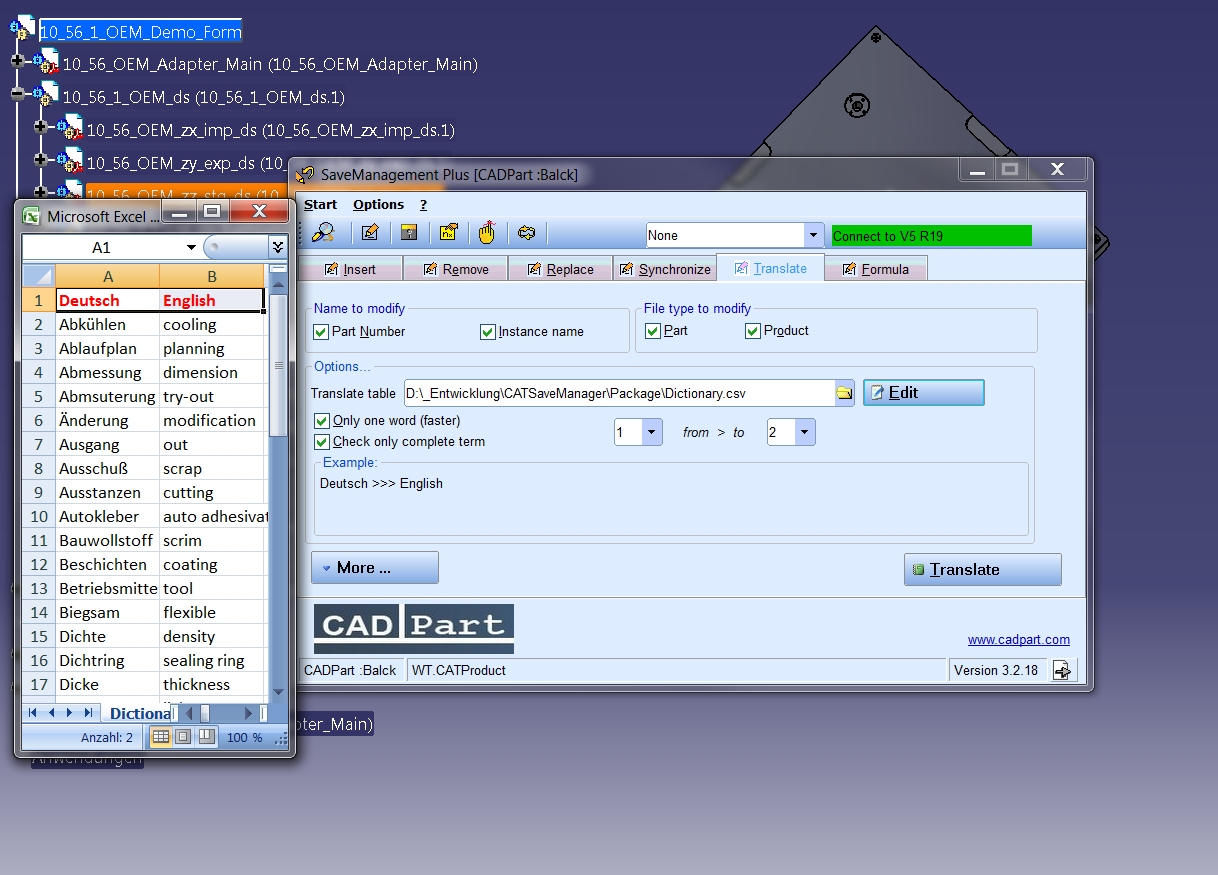

 Translate
  Dictionary | Remove | Replace | Synchronize

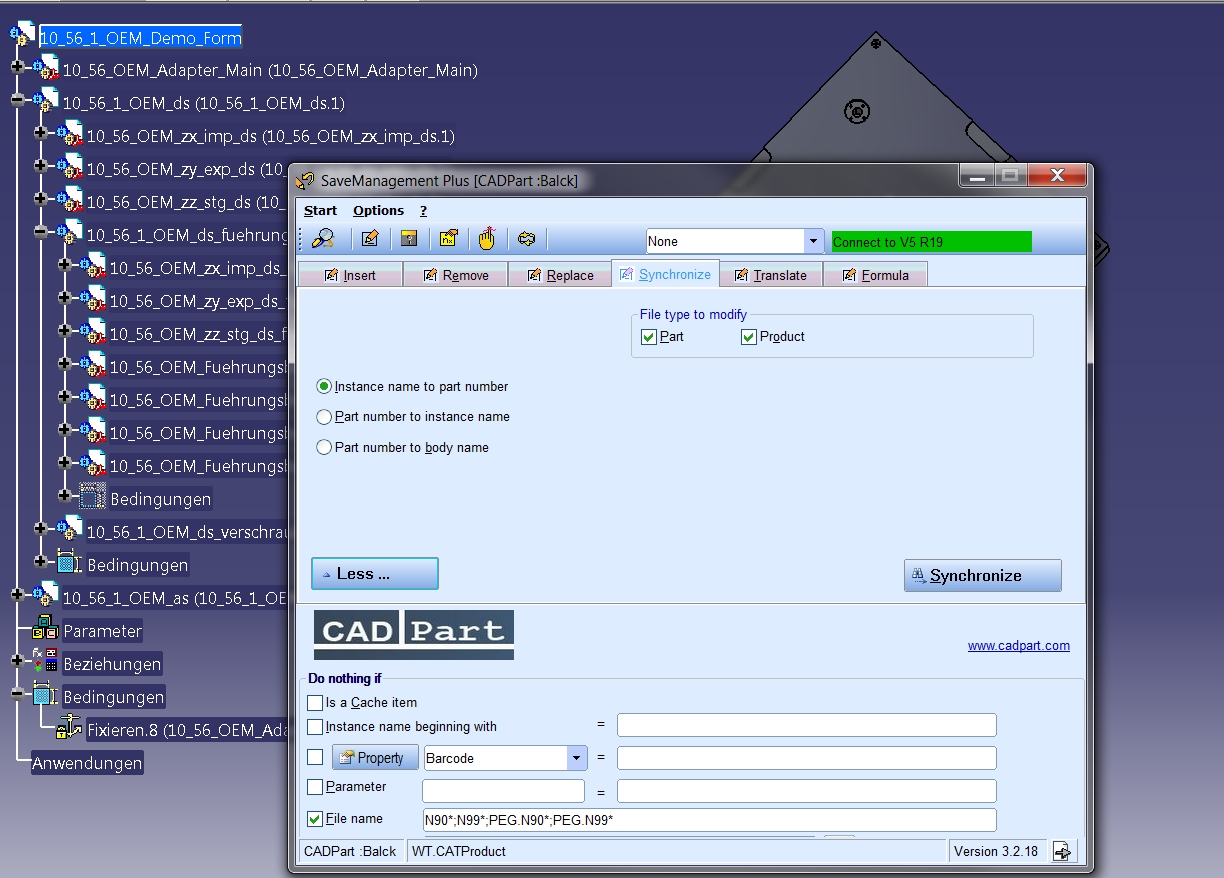

 Synchronize
 Partnumber | Instancename | Filename | Bodyname
Geometry simplification (Dummy)
 by using start-models

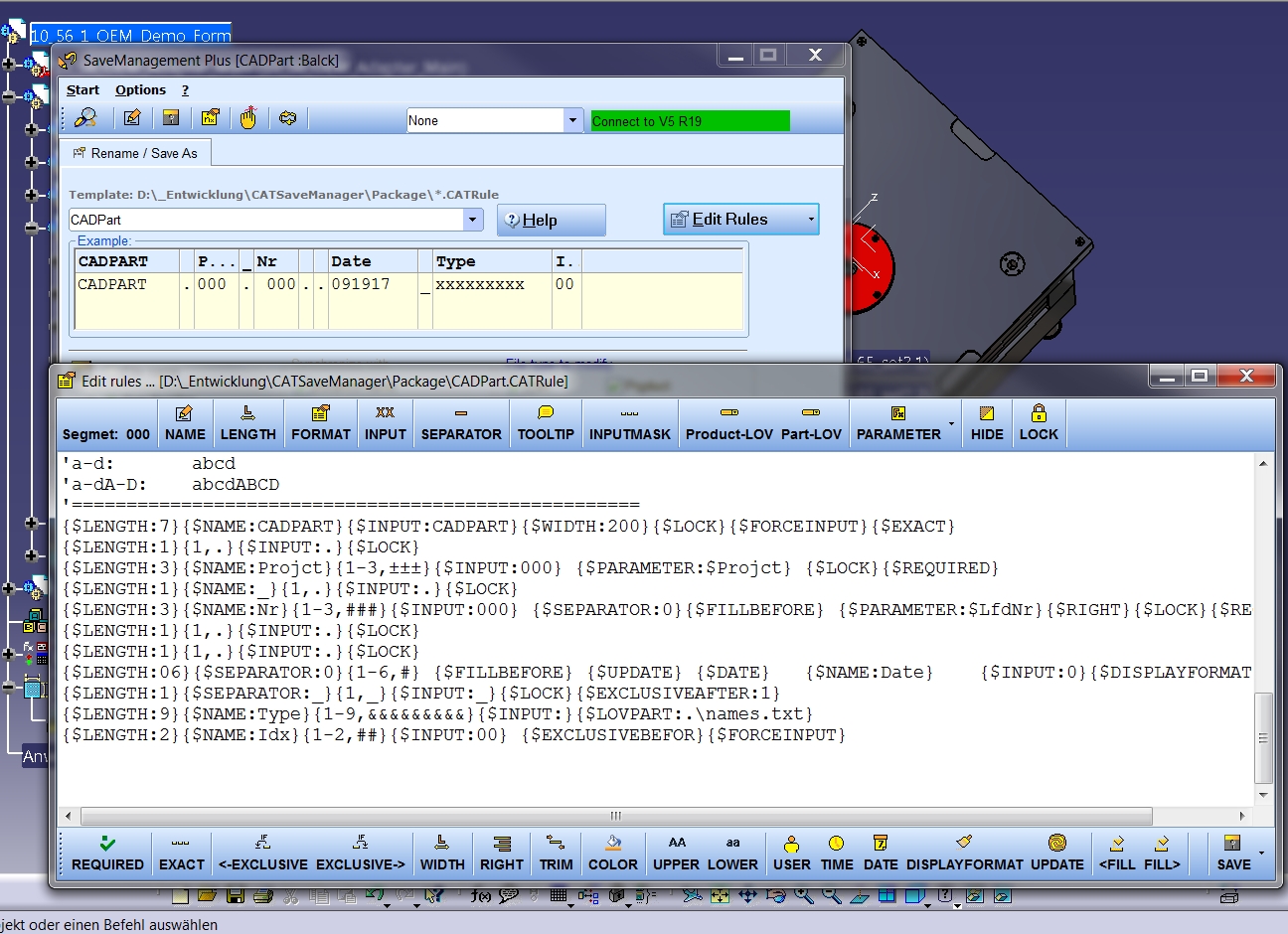

 Rule based renaming and saving
Partnumber | Instancename | Parameter

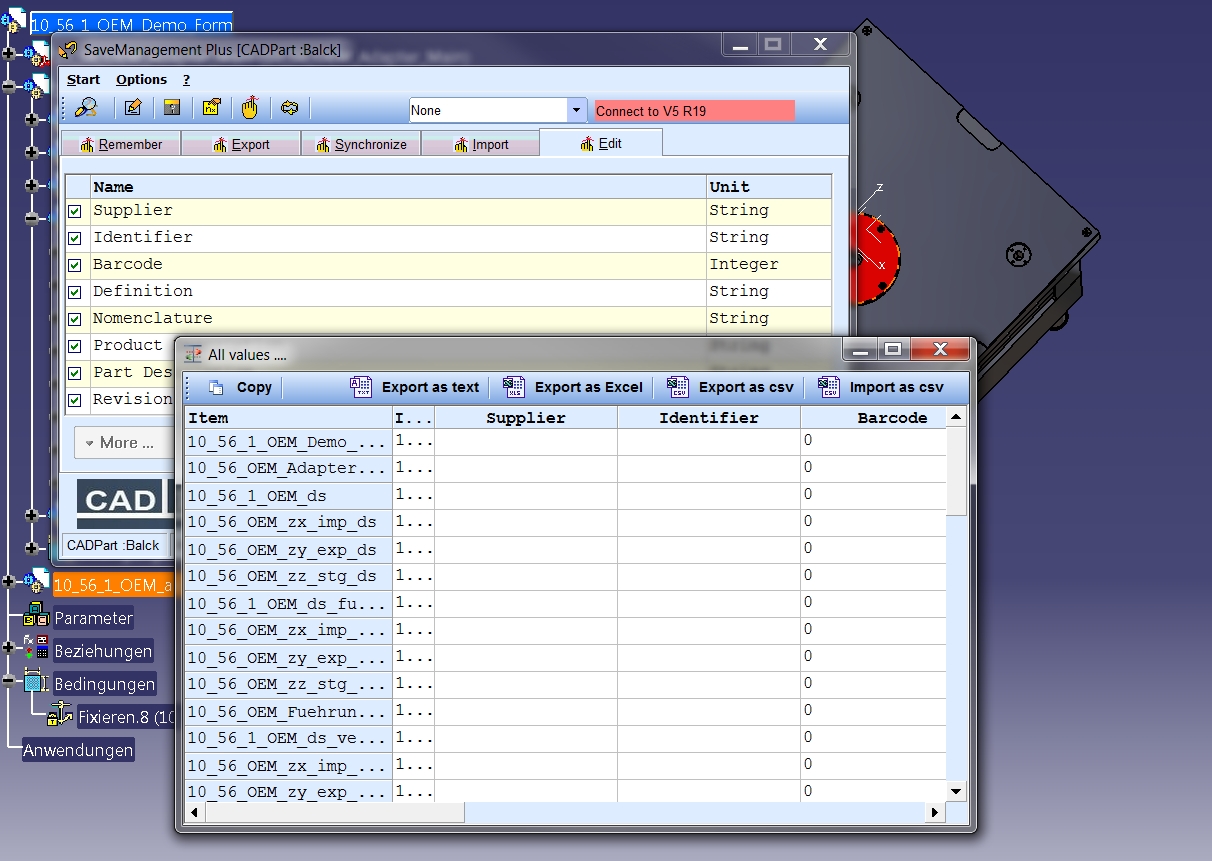

 Export | Import
  CSV
 Remember
  Partnumber | Instancename | Filename | Number | Nomenclature
 Keeps associativity to drawings
 Origin record | Edit | Update
